What is Data Structure?

Data Structure

• a set of data & a set of operations on the data
• This is a structure that makes easy to access and to use data
• Appropriate DT(data structure) makes more faster and more efficient program, but inappropriate DT make performance worse !

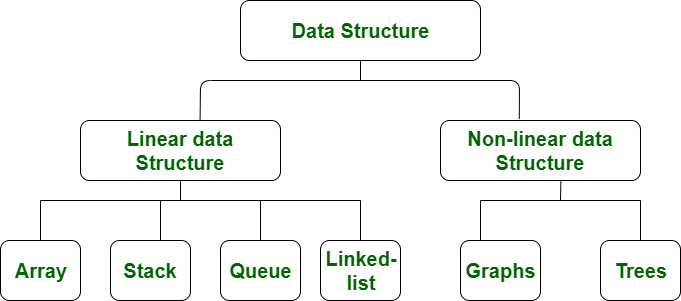

General Data Structure

img from : GeeksforGeeks

Program = Data Structure(how easy to treat data) + Algorithm(how easy to solve problem)

So be a good programmer, we should select proper method both



Then how to measure efficiency and cost?

• Time Complexity (e.g. Wall-clock time)
• Space Complexity (e.g. memory usage)

There is no the most efficient data structure -> Check Trade-off between DT's pros and cons

Select DT case by case



---



Abstract Data Type (ADT)

- Mathematical definition of data type

- a set of objects and a set of operations



e.g. integer's ADT

• a set of objects : {..., -1, 0, 1, ...}
• a set of operations : {+, -, X, %, >, ...}

Purpose of ADT : Seperate specification and implementation

• Specification : what is a data type, operations
• Implementation  : how to implement ?

e.g.

• Objects : 1 ~ INT_MAX
• Operations : add(x,y) -> return x+y

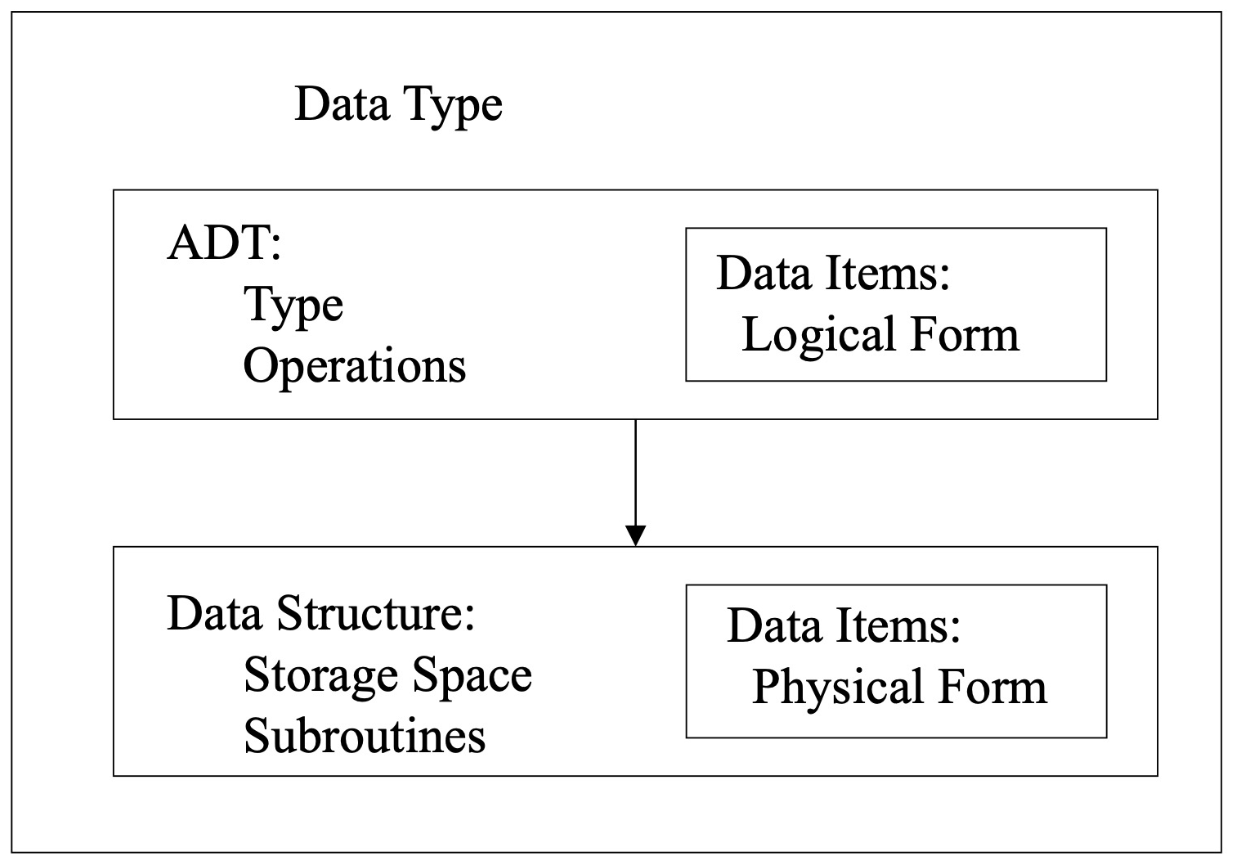

ADT

• Logical form : abstract def of data (e.g. interger)
• Phsical form : implemtation of data (e.g. 32bits)

---

How to know Time & Space Costs

Empirical method

Time : Wall-clock time, measure the real time

start_time = tic

Run an algorithm

end_time = toc

run_time = tic - toc

Space : memory usage (VmPeak)

cat /proc/$pid/status

pros : easy, intuitive

cons : variable for HW, OS, PL, etc(need several experiment), do not know exactly when input size increases to infinity



Theoretical method

complexity analysis

• \(T(n)\) : time complexity for given \(n\) input data
• \(S(n)\) : space complexity for given \(n\) input data

Time complexity

- Basic operations are constant time C

- Add, Substraction, Assignment, Comparison

# A
sum = 0
for i in range(0,n):
	sum = sum + n


# B
sum = 0
for i in range(0, n):
	for j in range(0, n):
    	sum =sum + 1

# C
sum = n * n

	Algorithm A	Algorithm B	Algorithm C
Assignments	n + 1	n x n + 1	1
Additions	n	n x n
Multiplications			1
Total	\(2n + 1\)	\(2n^2+1\)	\(2\)

we can know Algorithm C is the most efficient

Time complexity divided to Best, Average, Worst case

Must consider Wrost case !! Why? To gaurantee minimum performance

---

Asymptotic Analysis

Find time complexity when input n increases to inifinity

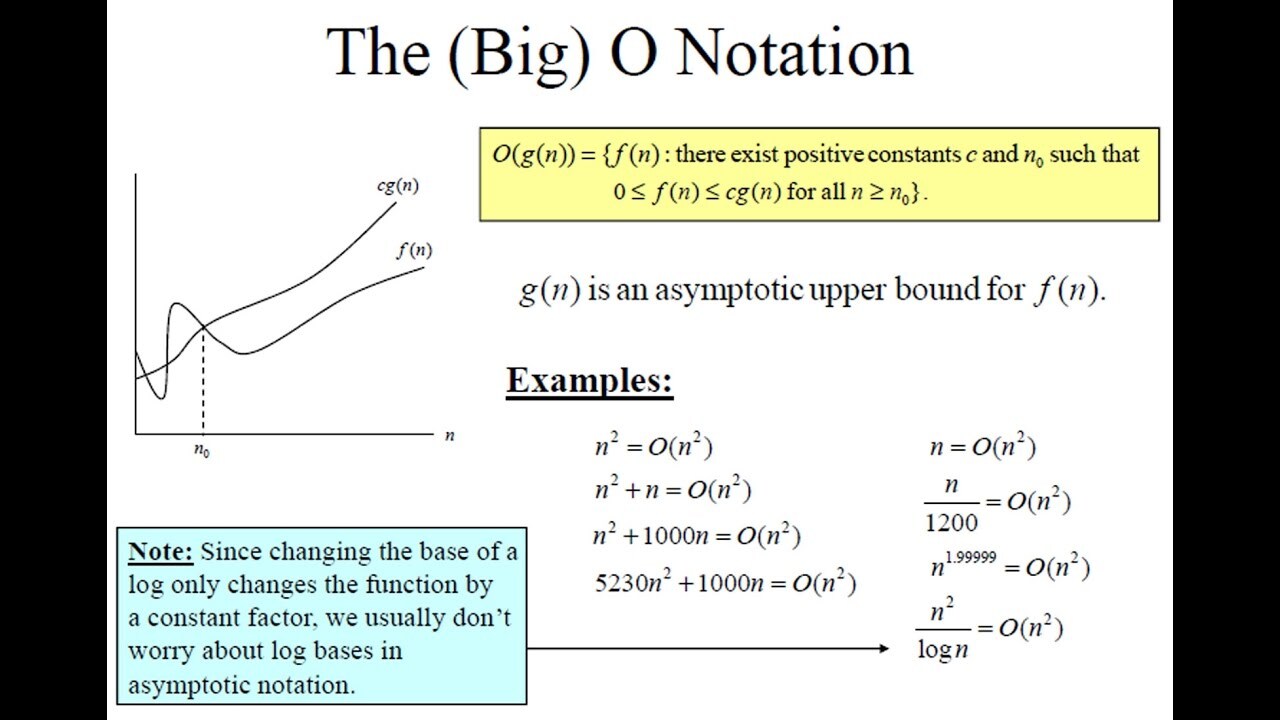

• Big - 0 (\(O\),Upper bound) Notation
• Big - 0mega (\(\Omega\),Lower bound) Notation
• Big - Theta (\(\Theta\),Exact bound) Notation

Definition \(T(n) = O(f(n)) [n \to \infty]\)

\(T(n)\; is\; the\; set\; O(f(n)) \)
\(  if\; there\; exist\; two\; positive\; constants\; c\; and\; n_0 \)
\( s \cdot t\; T(n) \leq cf(n)\; for\; all\; n \geq n_0\)

Big-O notation can be strict and loose

e.g. \(T(n) = 3n^2 = \{ O(n^2), O(n^3), O(n^4), \cdots \} \)

If someone says " assume Big-O tightly " -> \(T(n) = O(n^2)\)

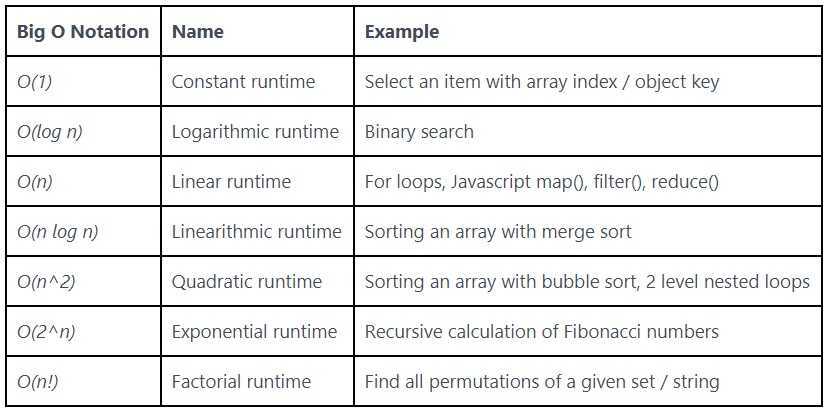

Several Big-O notation
